1：設主庫允許遠程連接(注意：設置賬號密碼必須使用的插件是mysql_native_password，其他的會連接失敗)

#切換到mysql這個數據庫，修改user表中的host，使其可以實現遠程連接
mysql>use mysql;
mysql>update user set host ="%" where user ="root";
#改完之后一定要刷新信息
mysql>flush privileges;

2：主庫開啟bin-log日志在my.cnf的[mysqld]下添加

#修改主服務器Master
#修改配置文件
vim /etc/my.cnf
#主服務器唯一ID，這個id可以隨便修改，只要不跟從服務器重復,注意連接是-,不是_
server-id=1
#啟用二進制日志
log-bin=mysql-bin

2-1：重啟主庫mysql

[root@localhost ~]# systemctl retart mysql

2-2：查看主庫server 相關信息

mysql>  show global variables like '%server%';
+---------------------------------+--------------------------------------+
| Variable_name                   | Value                                |
+---------------------------------+--------------------------------------+
| character_set_server            | utf8mb4                              |
| collation_server                | utf8mb4_0900_ai_ci                   |
| innodb_dedicated_server         | OFF                                  |
| innodb_ft_server_stopword_table |                                      |
| server_id                       | 1                                    |
| server_id_bits                  | 32                                   |
| server_uuid                     | b434ab49-df79-11ee-9c39-0242ac110002 |
+---------------------------------+--------------------------------------+
7 rows in set (0.00 sec)

mysql>

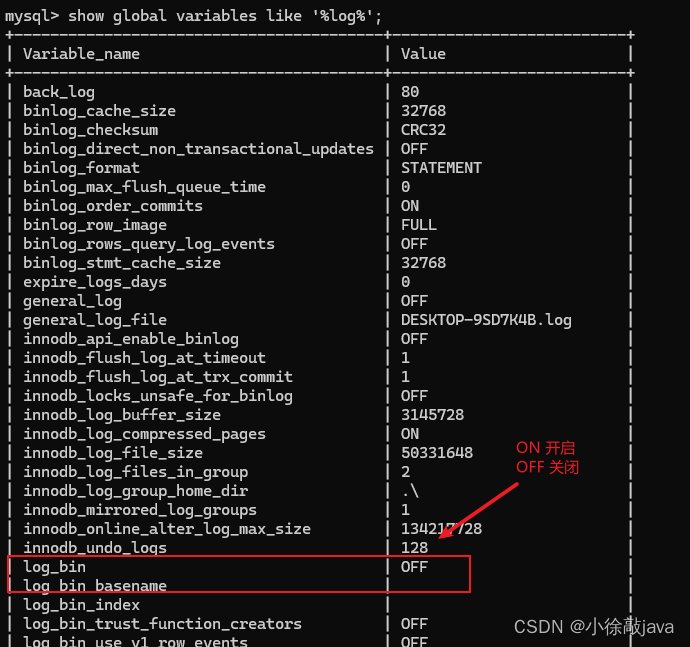

2-2：查看主庫是否開啟bin-log日志

mysql>  show global variables like '%log%';

2-3：查看主庫的最新狀態

mysql> show master status;
+------------------+----------+--------------+------------------+-------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000004 |      157 |              |                  |                   |
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)

mysql> FLUSH LOGS;
Query OK, 0 rows affected (0.01 sec)

mysql> show master status;
+------------------+----------+--------------+------------------+-------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000005 |      157 |              |                  |                   |
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)

mysql>

2-4：查看全部的二進制文件，可以選擇一步一步恢復

mysql> SHOW BINARY LOGS;
+------------------+-----------+-----------+
| Log_name         | File_size | Encrypted |
+------------------+-----------+-----------+
| mysql-bin.000001 |       204 | No        |
| mysql-bin.000002 |       204 | No        |
| mysql-bin.000003 |       204 | No        |
| mysql-bin.000004 |       204 | No        |
| mysql-bin.000005 |       157 | No        |
+------------------+-----------+-----------+
5 rows in set (0.00 sec)

mysql>

3：從庫開啟bin-log日志在my.cnf的[mysqld]下添加

#修改從服務器slave
修改配置文件：vim /etc/my.cnf
#從服務器唯一ID,注意連接是-,不是_
server-id=2
#啟用中繼日志
relay-log=mysql-relay

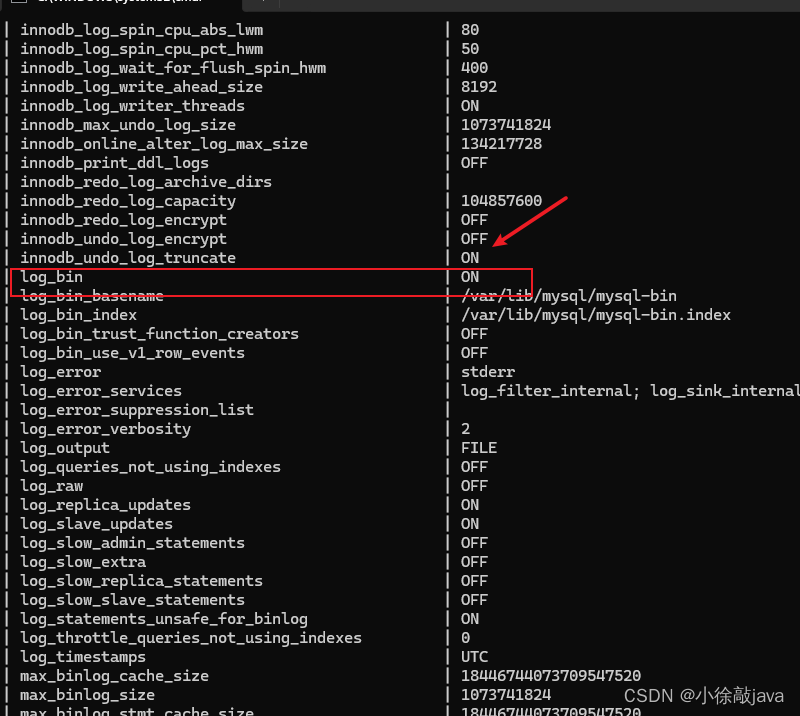

3-1：查看主庫是否開啟bin-log日志，從庫也是一樣

mysql>  show global variables like '%log%';

4：在主庫創建一個賬號slave，密碼123456，并且授權連接

mysql>GRANT REPLICATION SLAVE ON *.* to 'slave'@'%' identified by '123456';

4-1：在從庫指定主庫(添加 主節點主機，訪問主節點的用戶名及密碼，主節點二進制文件信息，注意：主節點的二進制文件一定要是二進制列表中的最后一個二進制文件。如果需要設置主主就是主庫也執行如下的命令，ip，賬號，密碼換成從庫的)

mysql> change master to master_host='192.168.11.47',master_user='root',master_password='root',master_log_file='mysql-bin.000005',master_log_pos=157;
Query OK, 0 rows affected, 8 warnings (0.01 sec)

5：檢查從庫復制功能狀態（注意：Slave_IO_Running，Slave_SQL_Running，兩個線程必須為yes狀態，否則主從復制搭建不成功）

show slave status \G;

5-1：先停止從庫的復制功能

mysql>stop slave;

5-2： 如果報錯，異常原因，從庫已經存在之前的relay log

mysql> start slave;
ERROR 1872 (HY000): Slave failed to initialize relay log info structure from the repository

5-3：解決方案，使用reset slave語句，清除master信息和relay日志信息，并創建全新的中繼日志.

mysql> stop slave;
Query OK, 0 rows affected, 2 warnings (0.00 sec)
mysql> reset slave;
Query OK, 0 rows affected, 1 warning (0.01 sec)
mysql> change master to master_host='192.168.11.47',master_user='root',master_password='root',master_log_file='mysql-bin.000005',master_log_pos=157;
Query OK, 0 rows affected, 8 warnings (0.02 sec)
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.01 sec)

5-4：再啟動從庫的復制功能

mysql>start slave;

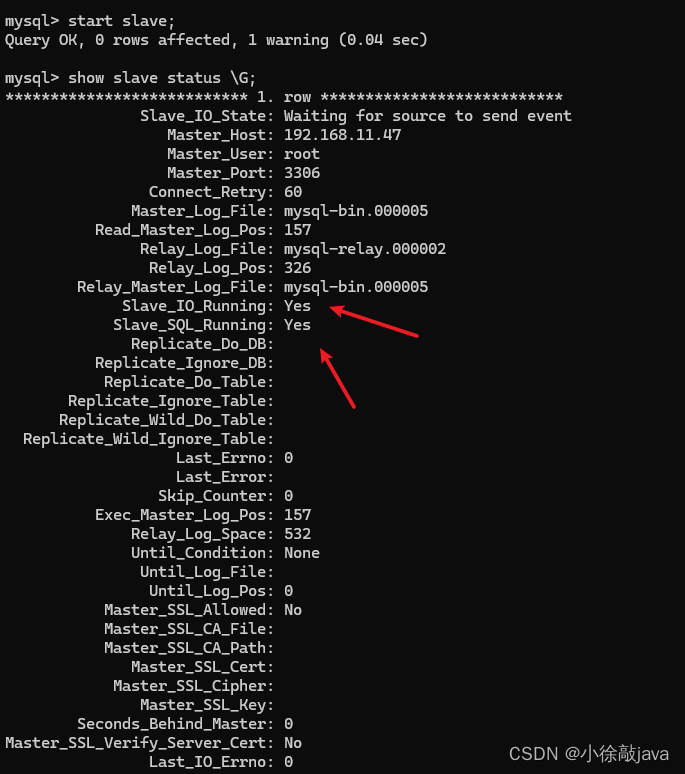

5-5：再查看從庫的狀態

show slave status \G;

6：keepAlived的配置文件權限必須是644
